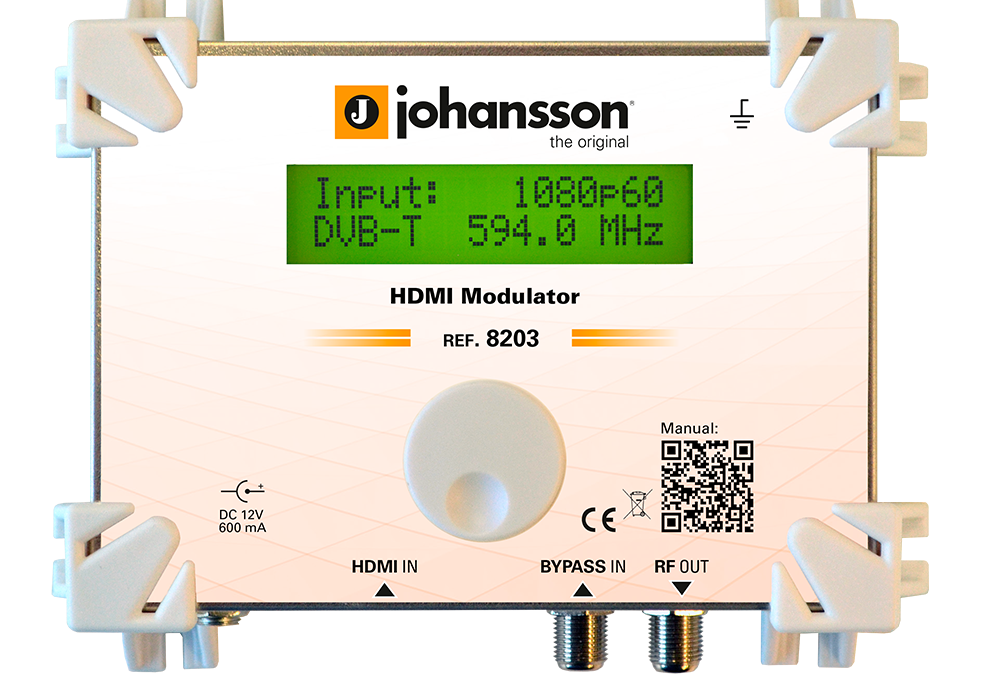

HDMI to DVB-T modulator: 1 HDMI input / 1 RF input

30 أبريل، 2022

Specifications

8203
HDMI INPUT
Video resolution	–	576i up to 1080p
Video encoding	–	H264/AVC
Audio encoding	–	MPEG1 Layer II / AAC
Connector type	–	HDMI Type A
RF INPUT
Frequency	MHz	5 – 1218
Loss to RF output	dB	2
RF OUTPUT (=RF INPUT SIGNAL + HDMI MODULATED TRANSPONDER)
Modulated channel frequency	MHz	174 – 790
Output level	dBµV	49 – 79 (adjustable)
MER	dB	Typ. 38
OUTPUT SETTINGS
Output type	–	DVB-T
Bitrate	Mbps	2 – 23
Channel bandwidth	MHz	6,7 or 8
Constellation	–	COFDM (QPSK / 16QAM / 64QAM)
Other settings	–	Code rate Guard Interval 2K-8K
CONFIGURATION
Basic configuration	–	Country \| Output Type \| Output Frequency \| Output Level \| LCN \| Channel Name
Advanced configuration	–	RF \| Video & Audio \| SID \| PMT, VPID, APID \| NIT, ONID \| PDS \| TS ID
POWER & DIMENSIONS, ETC…
Power	–	Input Voltage: 12 VDC \| Consumption: 5 W Typ. (6 W max.) \| Jack Ø 2.1 mm
Dimensions, weight, EAN code	–	155 x 120 x 60 mm. \| 0.6 kg. \| 2082030000012
Accessories	–	12V power adapter
